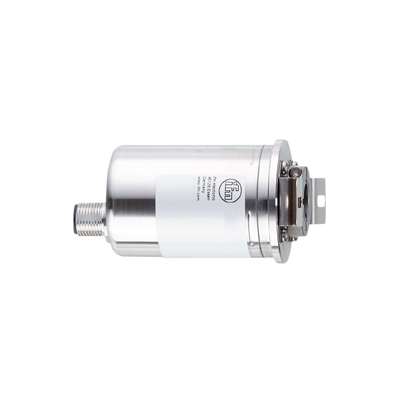

IFM RA3110 Absolute multiturn encoder with solid shaft

Defined pulse sequence for the reliable detection of rotational speeds

High shock and vibration resistance thanks to magnetic sensing principle

Resolution freely programmable from 1 ... 10,000

Communication interface:IO-Link

Shaft design:hollow shaft open to one side

Shaft diameter[mm]:12

Operating voltage[V]:4.75...30 DC

Current consumption[mA]:< 150

Weight[g]:372.9

Housing:cylindrical

Dimensions[mm]:Ø 42 / L = 79.5

Installation depth of shaft[mm]:22

Max. axial shaft misalignment[mm]:0,5

Fixing flange:Ø 42 mm
