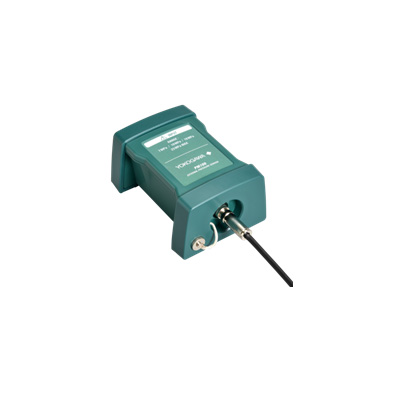

What is the external pressure sensor PM100? Pressure measurement up to 70MP (10150PSI) with the CA700! The PM100 is a pressure module which uses the same Yokoagwa dPharp technology as the CA700 and EJA/EJX series pressure transmitters. The unit plugs into the top of the CA700 and extends the pressure range of the CA700 to 70MP (10150PSI), with range switching options to increase resolution at lower pressure ranges. This unit is compatible with CA700's with firmware versions 1.20 or later. With earlier firmware versions, a simple update is needed to be able to communicate with the unit.

Main features of Yokogawa External Pressure Sensor PM100

The highest measurement accuracy in field type

Basic accuracy: 0.01% of reading

The highest resolution in class

0.0001 MPa (0.015PSI) is achieved in each range

Multi-range (Three pressure ranges in one unit)

7 MPa /10 MPa /16 MPa (-05)

(1015 PSI/1450 PSI/2320 PSI)

25MPa/50 MPa/70 MPa (-06)

(3625 PSI/7250 PSI/10150 PSI)
