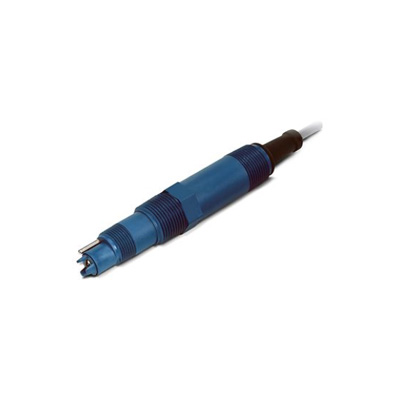

Rosemount™ 3900VP-02-10-CC General Purpose pH/ORP Sensor

Rosemount™ 3900 General Purpose pH/ORP Sensor

The Rosemount 3900 pH Sensor / ORP Sensor features a double junction reference that aids in the sensors' resistance to harsh environments and helps prolong sensor life. The double junction protects the reference element from poisoning ions-such as ammonia, chlorine, cyanides, and sulfides. Both sensors are made with a porous Teflon® junction. The robust ph/ORP sensor design provides reliability in a wide range of aqueous solutions found in pipelines, open tanks or ponds.

Specifications of Rosemount™ 3900 General Purpose pH/ORP Sensor

Operating Temperature–10° to 100°C (14° to 212°F)

Max. Operating PressureMaximum Pressure: 790 kPa [abs] (100 psig) at 100°C (212°F)

Materials of ConstructionStainless steel, glass, Teflon®, polyphenylene sulfide (PPS), EPDM and silicone (If selecting the ORP sensor, an additional wetted material is Platinum.)

Process ConnectionFront facing: 3⁄4" and 1" MNPT; Rear facing: 1" MNPT

More models of Rosemount™ 3900 pH/ORP Sensor

3900-01-12-LC;3900-01-12-EC;3900-01-12-CC;3900-1-12;3900-02-12-LC;3900-02-12-EC;

3900-02-12-CC;3900-2-12;3900VP-01-12-LC;3900VP-01-12-EC;3900VP-01-12-CC;

3900VP-01-12;3900VP-02-12-LC;3900VP-02-12-EC;3900VP-02-12-CC;3900VP-02-12;

3900-01-10-LC;3900-01-10-EC;3900-01-10-CC;3900-1-10;3900-02-10-LC;3900-02-10-EC;

3900-02-10-CC;3900-2-10;3900VP-01-10-LC;3900VP-01-10-EC;3900VP-01-10-CC;

3900VP-01-10;3900VP-02-10-LC;3900VP-02-10-EC;3900VP-02-10-CC;3900VP-02-10;
