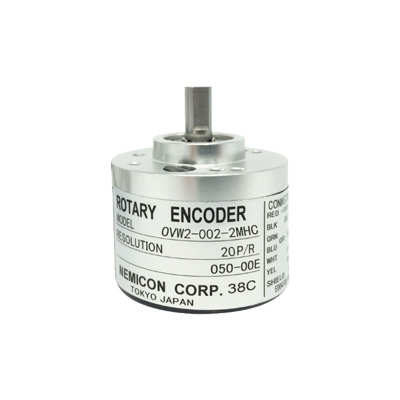

Nemicon OVW2 OVW2-002-2MHC incremental rotary encoders

Nemicon OVW2-002-2MHC is an incremental rotary encoder. Here is a detailed introduction:

Model Specification: The "002" in the model indicates a resolution of 20 pulses per revolution (P/R), and "2MHC" represents specific output and other characteristics. It belongs to the OVW2 series of Nemicon encoders.

Appearance and Dimensions: It has a compact structure with an outer dimension of Ф38×30mm and a shaft diameter of Ф6mm with a D - type notch, which is convenient for connection with other mechanical components.

Technical Specifications

Output Signal: The output signals include A - phase and Z - phase, which can provide position and reference information. The A - phase signal can be used to measure the rotation speed and direction, and the Z - phase signal is usually used for zero - point positioning or as a reference signal.

Power Supply Voltage: It supports two power supply voltage ranges, DC 5V or DC 10.8 - 26.4V, which provides flexibility in power supply selection and is suitable for different power supply systems.

Output Mode: It has multiple output modes, including open - collector output, long - line drive output, and push - pull output. Different output modes can meet the needs of different application scenarios and interface requirements.
