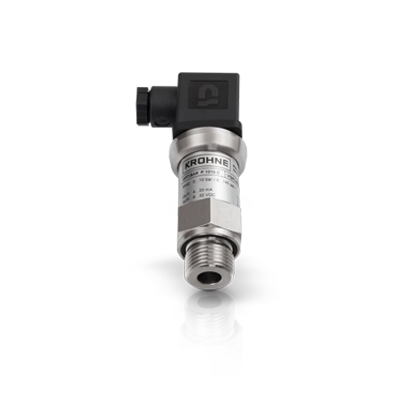

KROHNE OPTIBAR P 1010 Pressure transmitter

OPTIBAR P 1010

Pressure transmitter for basic pressure and level applications

Ultra-compact design with recessed stainless steel diaphragm

Up to 600 bar / 8700 psi

Thread: ¼, ½ NPT (male); G¼, G½ (male)

2-wire 4…20 mA

The OPTIBAR P 1010 is an ultra-compact pressure transmitter for absolute and gauge pressure measurement of gases and liquids. The pressure transmitter is a very cost-effective device for simple process pressure applications (e.g. monitoring of pumps, compressors or other machinery) as well as hydrostatic level measurement in open vessels where space-saving installation is required.

Space saving design for installation in limited spaces

Extraordinary accuracy of ±0.25%

Outstanding temperature stability

Long-term stability: ±0.1% within 1 year

Modular design: free combination of device options such as electrical connections, diaphragm material, fill oil, measuring range, process connections

Ingress protection up to IP68 / NEMA 6P

ATEX/IECEx intrinsically safe approval for Zone 0
